Constant Voltage slim IP67 12v 8.3a 100w led driver waterproof power supply

FOB Reference Price:Get Latest Price
  • 200 - 999 Pieces
    US $17.00
  • 1000 - 4999 Pieces
    US $16.00
  • >=5000 Pieces
    US $15.00
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
BERSN
Model Number:
100w LED driver
Output Power:
101 - 200W
Output Type:
Single
Input Voltage:
180-305Vac
Output Voltage:
12V
Output Frequency:
47-63HZ
Output Current:
8.3A
power:
100w led driver
Type:
Constant Voltage
Color:
silver or customized
housing material:
aluminium
Certification:
CE ROHS
Efficiency:
91%
Application:
outdoor lighting
warranty:
5 years
N.W:
1KG
IP rating:
IP67
Supply Ability
Supply Ability:
20000 Piece/Pieces per Month led driver outdoor
Packaging & Delivery
Packaging Details
20 pieces/carton for Constant Voltage slim IP67 12v 8.3a 100w led driver waterproof power supply
Port
shenzhen

Constant Voltage slim IP67 12v 8.3a 100w led driver waterproof power supply

Specifications

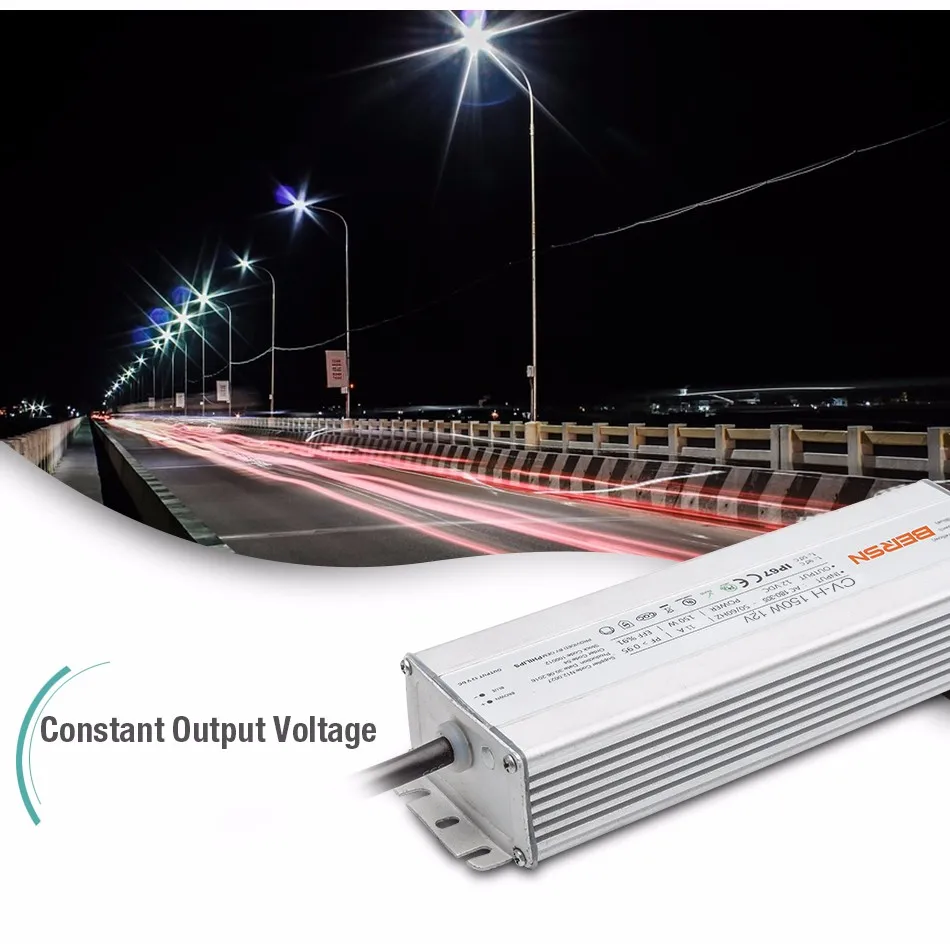

  • Constant output voltage
  • Wide AC input/ Full range
  • Built-in active PFC function
  • High efficiency up to 91%
  • Protections: short circuit/ Over current/ Over voltage/ Over temperature
  • IP67 design for outdoor installation
  • Surge protection Integrated 4KV (IEC standard)



Product Description

 Advantages of IP67 12v 8.3a 100w led driver

  • 1.The constant dc current output provides the long lifetime and optimum operation of high power led.
  • 2.Output voltage according to the load change.
  • 3.With different low current output, driver the led chip directly.
  • 4.High efficacy,multiple leds series, in parallel connection, or combination.
  • 5.The life span can be over 50,000hrs
  • 6.Timing dimming,timing to turn off the lights function
  • 7.Have DAC(0-10v) interface, remote control system compatible

Application of 100w led driver

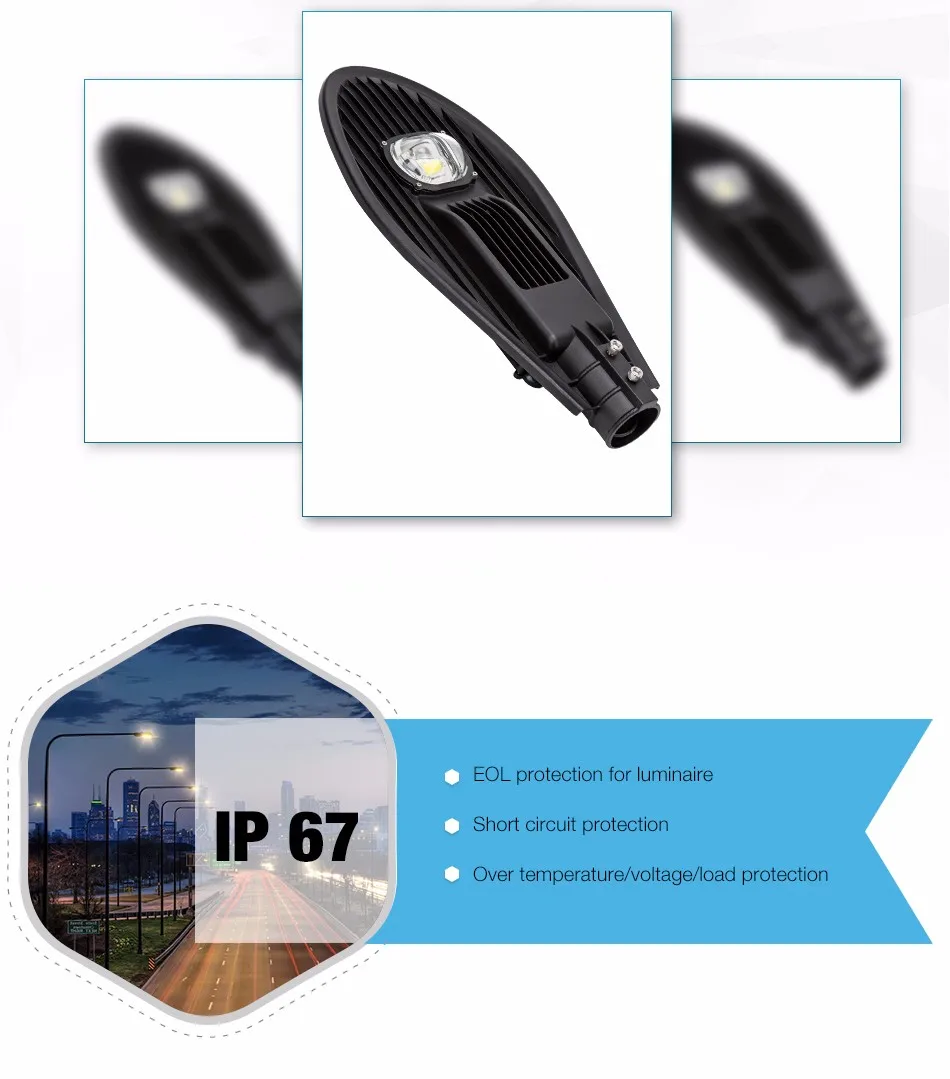

  • Outdoor Lighting:LED street light,flood light,high bay,tunnel light and etc

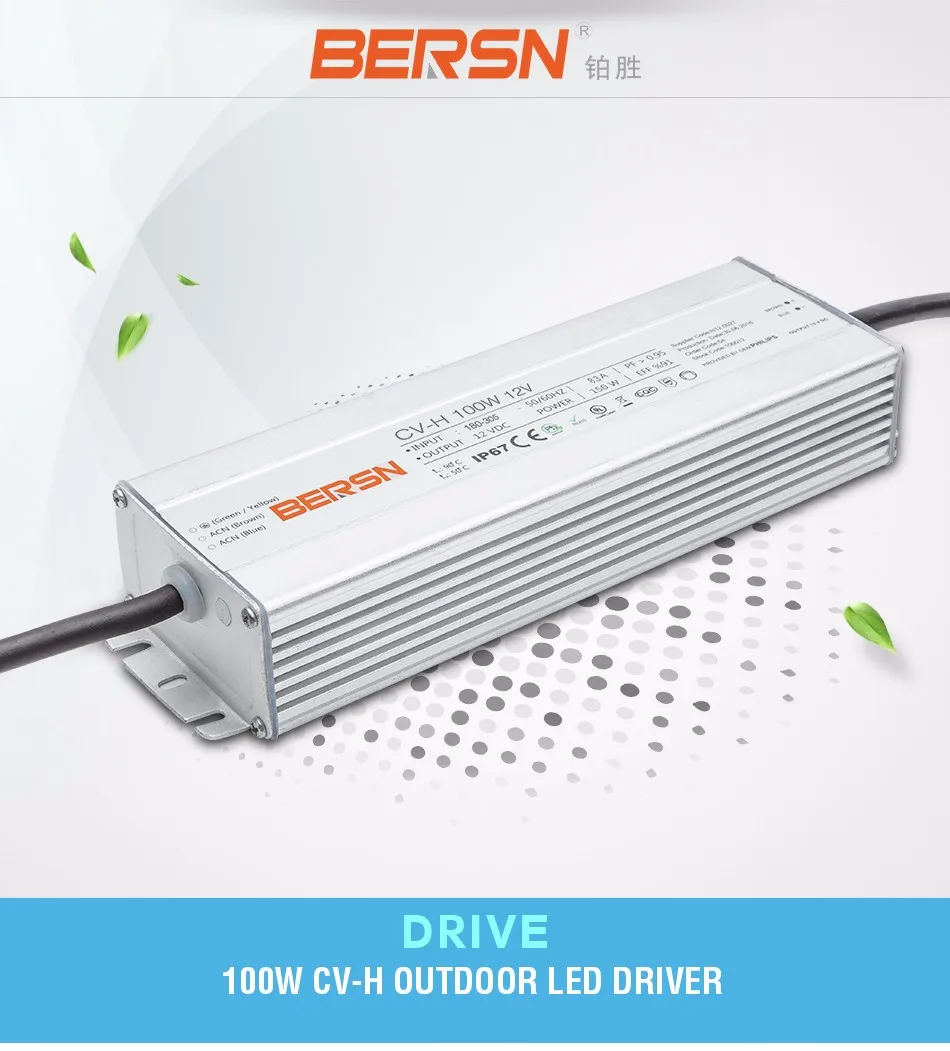

Pictures of  100w led driver

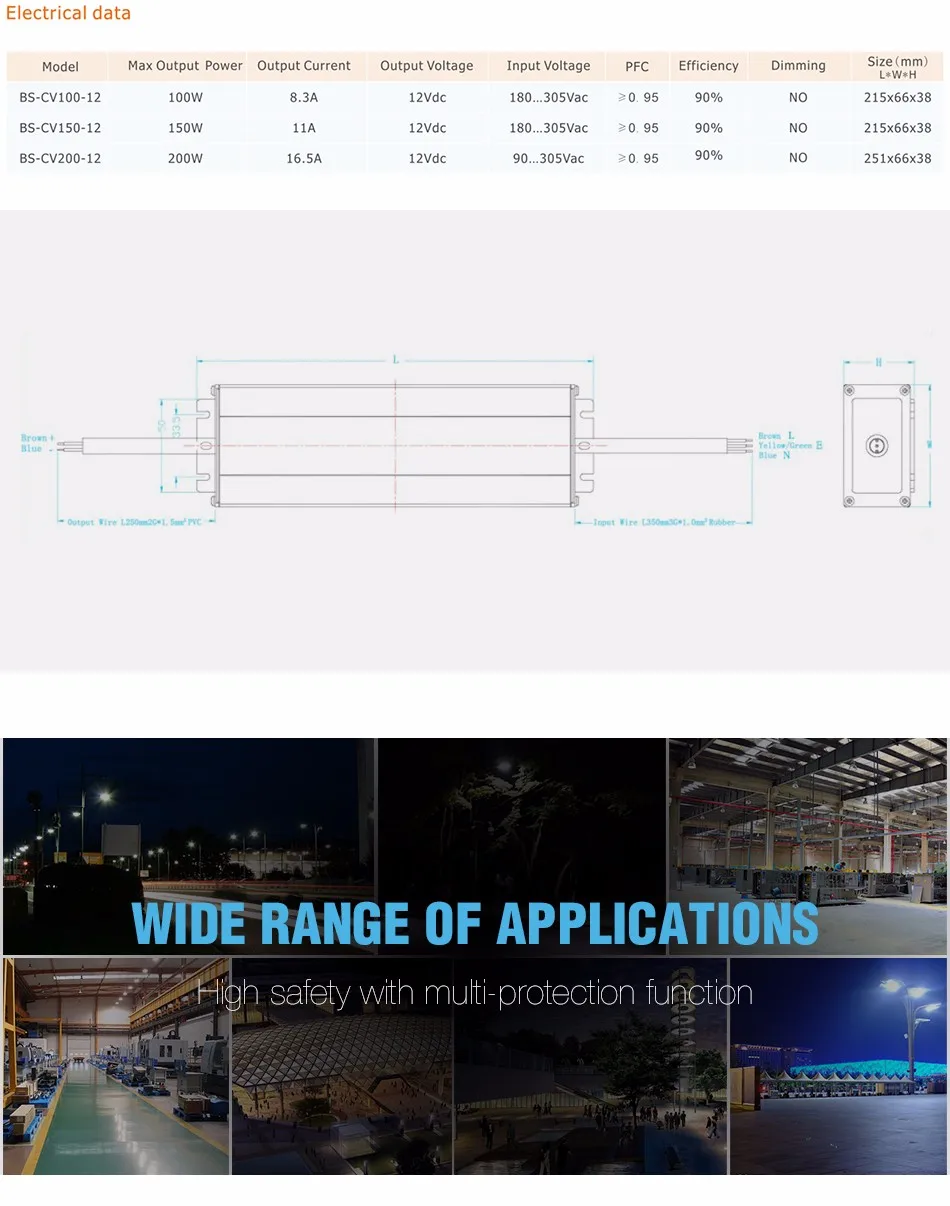

Output Parameters of 100w led driver

Output Voltage

12 Vdc

Output Voltage Max

12 Vdc

Output Voltage Max

8.5A

Output Current Tolerance

5%

Output Current Ripple LF

5%

Output Power

100w

Galvanic Isolation

±1%



Input Parameters of 100w led driver

Nominal Input Voltage

220 ...240Vac

Input Voltage AC

180…305Vac

Nominal Input Frequency

50…60 Hz

Input Frequency AC

47-63Hz

Nominal Input Current

0.370.61 A

Maximum Input Current

0.5 A

Nominal Input Power

110 W

Power Factor

>0.95

Total Harmonic Distortion

< 20 %

Efficiency

 91 %



Protection of 100w led driver

  • Over Temperature Protection
  • Open Circuit Protection
  • Short Circuit Protection
  • Over Voltage Protection

Welcome to contact us for more details of 12v 8.3a 100w led driver

Technical Parameters of installation



  • 1.Over current:95-108%
  • 2.Protection mode:Constant current limit mode,the load can be automatically restored after removing abnormal conditions.
  • 3.Short circuit:Hiccup mode,can recover automatically when abnormal condition is moved.
  • 4.Over temprerature:85 ℃ ±10%C(RTHz);Protection mode:turn off the output voltage,recover when restarting.
  • 5.Operating temp:-40 ℃-+70
  • 6.Working Humidity:20-95%RH,without refrigeration.
  • 7.Storage Temp,Humidity:-40  ℃-+80  ℃,10-95%RH
  • 8.Temperature Factor: ±0.03%/ ℃(0-60 ℃)
  • 9.Vibration Resistance:10-500Hz,5G 12mins/period, 72mins for X,Y,Z axis each.

Installation Notes:

  • 1.When using the power supply, please pay attention to distinguishing the input and output terminal, and connect the wires correctly,then turn it on after making sure it is correct.
  • 2.Please firstly connect the load of DC output terminal, make sure it's correct and then turn on the power supply.
  • 3.Welding the power line to avoid other solder tin,tin,tin false,short circuit,all leads must avoid direct contact with the surface of capacitance.
  • 4.Using environment temperature must be in accordance with the specification requirements.
  • 5.When power assembly to the fixture,need to make an aging text more than 24hours according to the actual situation,to ensure the quality of the fixture product.
More Choise
  IP66 LED street light  LED grow light    Aluminum high bay led light
Concentrator for led street light   Solar LED street light with camera






Company Information



Trade Shows





Packaging & Shipping



1.Payment terms:T/T, 30% deposit, 70% before shippment

2.Packaging details: Standard export packing, or according to your requirements

3.Transportation: By Express( DHL/UPS/TNT/Fedex ),air or sea.Freight paid by buyer

4.Delivery time: 7-15 working days after receiving the deposit (Based on order quantity)



Our Services

      Welcome to contact us for more information,good quality,best service  are our  enterprise tenet.









FAQ

Q1. What about the lead time?

A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than



Q2.Do you have any MOQ limit for order?

A: Low MOQ, 1pc for sample checking is available



Q3. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.



Q4.Is it OK to print my logo on product?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.



Q5: Do you offer guarantee for the products?

A: Yes, we offer 5 years warranty to led driver.
