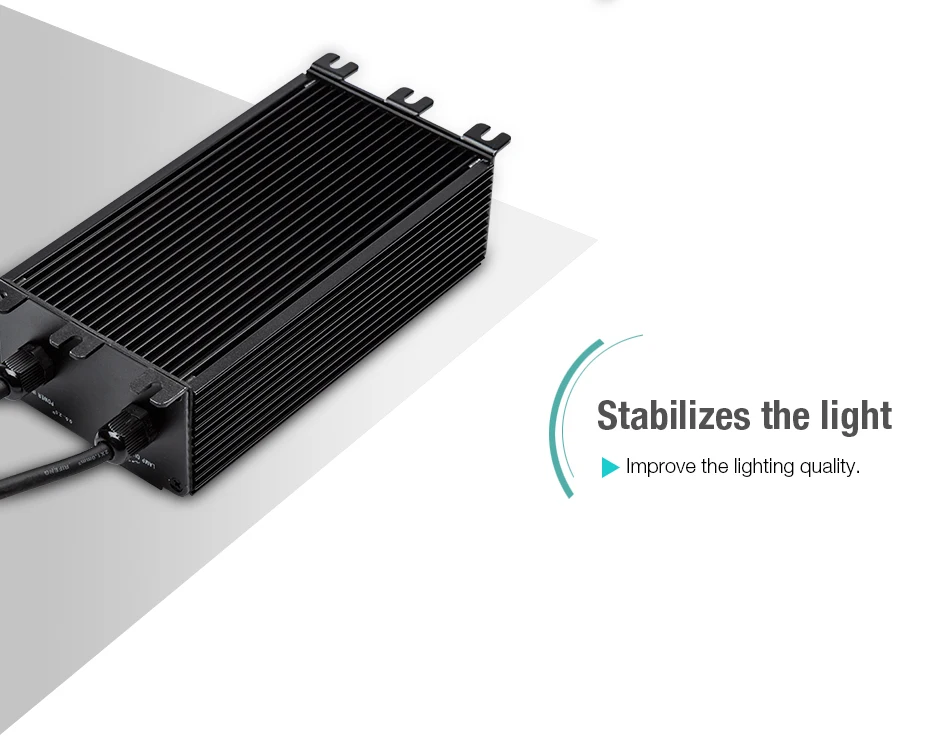

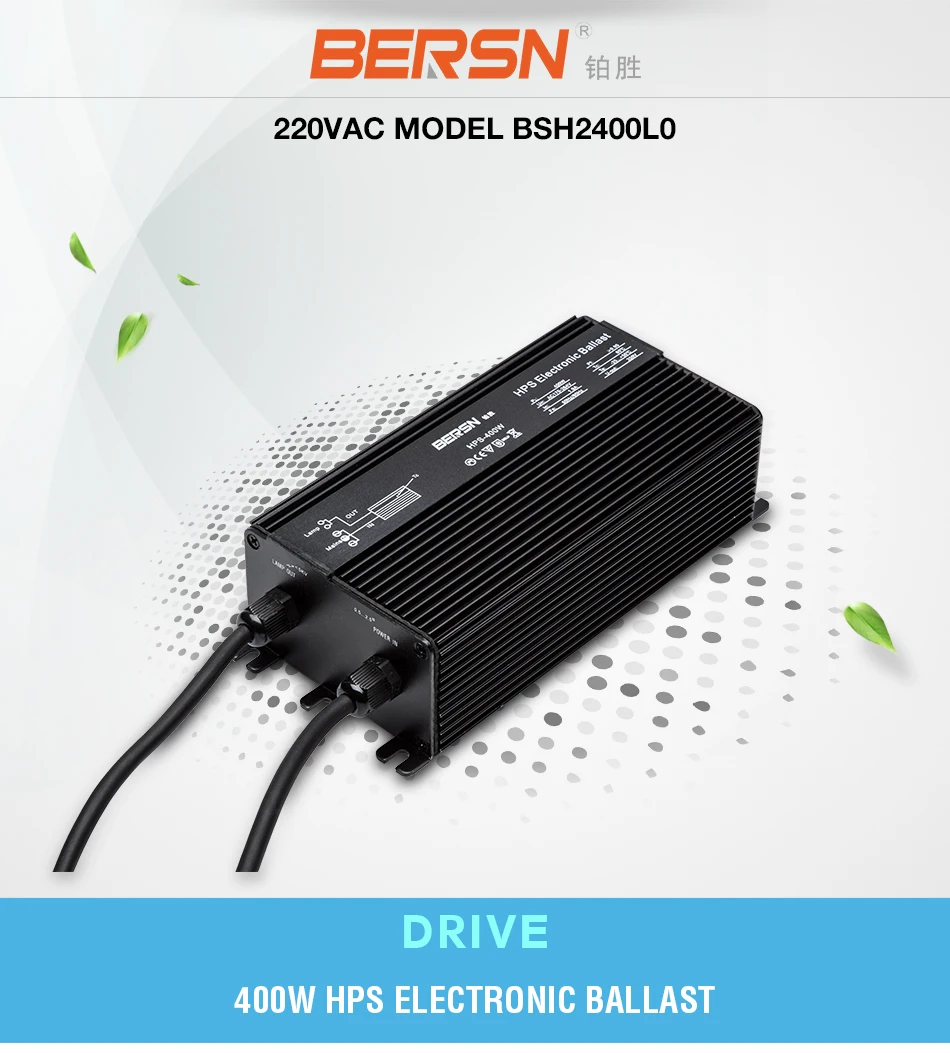

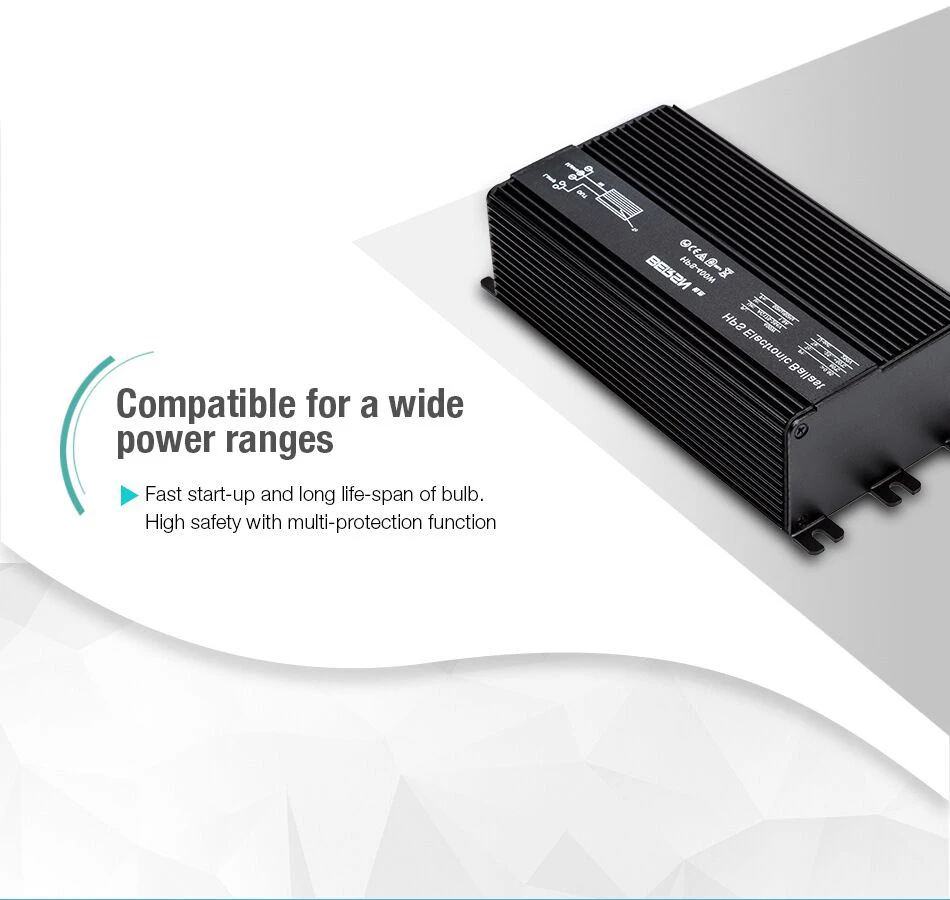

400w electronic ballast aluminum shell HID High Pressure Sodium Bersn HPS grow light ballast

FOB Reference Price:Get Latest Price
  • 1 - 100 Pieces
    US $40.00
  • 101 - 500 Pieces
    US $38.00
  • >=501 Pieces
    US $36.00
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
BERSN
Model Number:
Electronic Ballast
Style:
Electronic
Usage:
High Pressure Sodium
Matched Tube:
HID
Power Factor Compensation:
Active
power:
400w
voltage:
AC220v
power factor:
≥0.95
Input current:
1.82A
Ignition Voltage:
3KV
Max distance to lamp:
3m
T-ambient:
-30℃~+50℃
T-case Max:
80℃
Certificate:
CE,RoHs,CCC,CQC
life span:
60000 hours
Supply Ability
Supply Ability:
20000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
10 pieces/carton for 400w electronic ballast aluminum shell HID High Pressure Sodium Bersn HPS grow light ballast or negotiable
Port
shenzhen
Lead Time :
Shipped in 5 days after payment

400w electronic ballast aluminum shell HID High Pressure Sodium Bersn HPS grow light ballast



Specifications

400w electronic ballast aluminum shell HID High Pressure Sodium Bersn HPS grow light ballast
1.Energy saving , environmental
2.Safety:EN61347-2-12

3.CE,RoHs,CCC,CQC


Product Description

 Advantages of 400w electronic ballast HID-High Pressure Sodium Bersn HPS grow light ballast

  • 1.Microprocessors have "color control" function,stable voltage change may cause the color temperature and output change.
  • 2.Light source and electronic ballast are developed and designed systematically optimized performance design.
  • 3.Specific operating frequency, eliminating light flash, comfortable lighting effect.
  • 4.Constant power output, small light color difference, stable output lumen, excellent lighting effect.
  • 5.Low power consumption, less heat dissipation, effectively reduce energy consumption and reduce electricity cost of environment temperature(such as air-condition) etc.
  • 6.Have the light end-of-life protection function, over temperature/viltage/load, short circuit protections etc.
  • 7.Wide range operating voltage, can up to 160-260v max.
  • 8.Easy wire connection, convenient installation.


 400w hps ballast 1.jpg400w hps ballast 2.jpg400w hps ballast 3.jpg400w hps ballast 4.jpg400w hps ballast 5.jpg



Product specification

Modelpower(w)Voltage(v)Voltage rangeInput current(A)Power factorRemark
BSH2400A400w220v160v-260v1.82A≥0.95



Welcome to inquire 400w electronic ballast aluminum shell HID-High Pressure Sodium Bersn HPS grow light ballast

Installation Technical Parameters:

  •    Rated power supply voltage:220v-240v
  •    Performance voltage:+6%..-10% 198-254v
  •    Safe Voltage:180-264v
  •    Frequency:50/60Hz
  •    Operating Frequency(typical):140KHz
  •    Starting Voltage:3-5KV
  •    The space from any charged (metal) components to the earthing(grade)or test
  •    Grade and creepage distance :over 5mm
  •    Leak Current: every ballast less 0.7Ma
  •    Load capacity:Max. 120Pf
  •    Vibration Resistance:10-500Hz,5G 12mins/period,72 mins for X,Y,Z axis each

IP Rating

  •   EOL prorection for luminaire
  •   Short circuit protection
  •   Over temperature protection



Notes:

  • 1.In the case of a three-phase power supply,do not disconnect the neutral wire; otherwise the circuit may be damaged.
  • 2.Ballast could withstand the 3 times voltage drop (over 10ms,then should turn off and restart the power supply, to reset  the ballast.
  • 3.To achieve the appropriate electromagnetic compatibililty, the internel circuit of lighting devices should be short circuit as far as possible; the power line should not in flat with the line of luminaires.
  • 4.Overheating fixtures automatically start, the fixture could be used 20mins at most.
  • 5.Could not operate 24 hours all day.



Packaging & Shipping

 packing 2.jpg

shipping 1.jpg

  • 1.Payment terms:T/T, 30% deposit, 70% before shippment
  • 2.Packaging details: Standard export packing, or according to your requirements
  • 3.Transportation: By Express( DHL/UPS/TNT/Fedex ),air or sea.Freight paid by buyer
  • 4.Delivery time: 7-15 working days after receiving the deposit (Based on order quantity)

 Facility

.png

facility 1.jpg

 Cerfitication

Certificates 2.jpg



Our Services

            BERSN has trained a batch of rapid response,skilled after-sale service team, and successfully provided on-site and remote service support for clients from exceed 35 countries and areas.



Company Information



Company profile 4.jpg



 About us

 exhibition 4.jpg





FAQ

 Q1. What about the lead time?

A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than



Q2.Do you have any MOQ limit for order?

A: Low MOQ, 1pc for sample checking is available



Q3. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.



Q4.Is it OK to print my logo on product?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.



Q5: Do you offer guarantee for the products?

A: Yes, we offer 3 years warranty to electronic ballast
