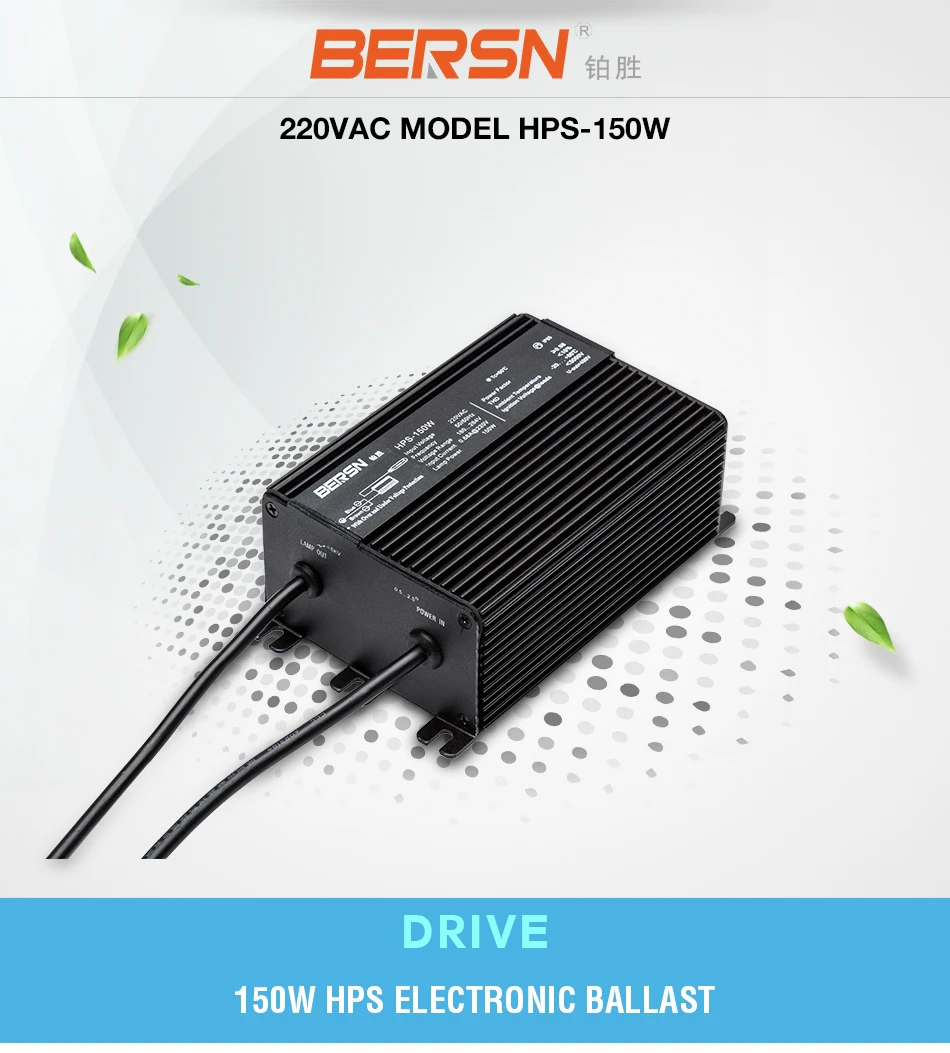

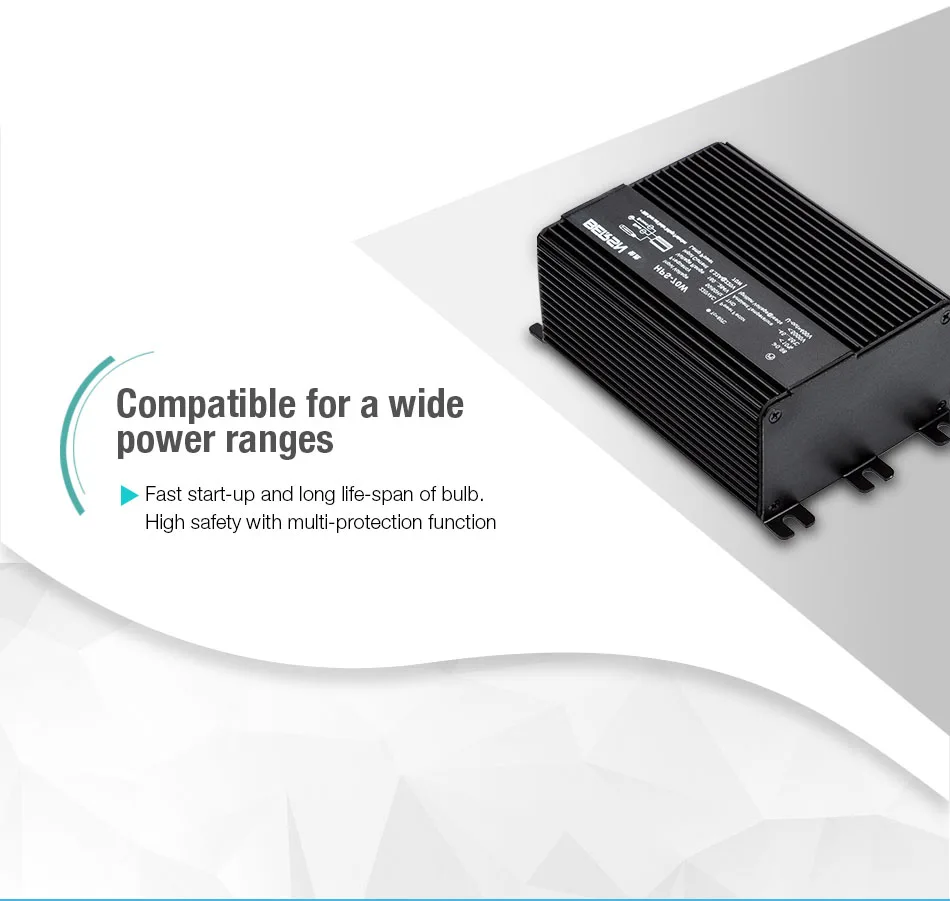

150w hid hps high pressure sodium fast start electronic street light ballast

  • 1 - 100 Pieces
    US $22.00
  • 101 - 500 Pieces
    US $21.00
  • >=501 Pieces
    US $20.00
Model Number:
HPS Electronic Ballast
Wattage:
Other 150W
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
BERSN
Style:
Electronic
Usage:
High Pressure Sodium
Matched Tube:
HID
Power Factor Compensation:
Active
power:
150w
voltage:
AC220v
power factor:
≥0.95
Input current:
0.69A
Ignition Voltage:
3KV
Max distance to lamp:
3m
T-ambient:
-30℃~+50℃
T-case Max:
80℃
Certificate:
CE,RoHs,CCC,CQC
life span:
60000 hours
SupplyAbility
SupplyAbility:
20000 Piece/Pieces per Month 150W electronic street light ballast
Packaging & Delivery
Packaging Details
10 pieces/carton for 150w hid hps high pressure sodium electronic street light ballast or negotiable
Port
shenzhen
Lead Time :
Shipped in 3 days after payment

     150w hid hps high pressure sodium fast start electronic street light ballast



Specifications

150w hid hps high pressure sodium fast start electronic street light ballast

  • 1.Energy saving , environmental
  • 2.Safety:EN61347-2-12
  • 3.CE,RoHs,CCC,CQC

Product Description

 Advantages of  150w hid hps high pressure sodium fast start electronic street light ballast

  • 1.Microprocessors have "color control" function,stable voltage change may cause the color temperature and output change.
  • 2.Light source and electronic ballast are developed and designed systematically optimized performance design.
  • 3.Specific operating frequency, eliminating light flash, comfortable lighting effect.
  • 4.Constant power output, small light color difference, stable output lumen, excellent lighting effect.
  • 5.Low power consumption, less heat dissipation, effectively reduce energy consumption and reduce electricity cost of environment temperature(such as air-condition) etc.
  • 6.Have the light end-of-life protection function, over temperature/viltage/load, short circuit protections etc.
  • 7.Wide range operating voltage, can up to 160-260v max.
  • 8.Easy wire connection, convenient installation.



Product specification

Modelpower(w)Voltage(v)Voltage rangeInput current(A)Power factorRemark
BSH2150A150w220v160v-260v0.69A≥0.95



Welcome to inquire 150w hid hps high pressure sodium fast start electronic street light ballast

Installation Technical Parameters:

  •    Rated power supply voltage:220v-240v
  •    Performance voltage:+6%..-10% 198-254v
  •    Safe Voltage:180-264v
  •    Frequency:50/60Hz
  •    Operating Frequency(typical):140KHz
  •    Starting Voltage:3-5KV
  •    The space from any charged (metal) components to the earthing(grade)or test
  •    Grade and creepage distance :over 5mm
  •    Leak Current: every ballast less 0.7Ma
  •    Load capacity:Max. 120Pf
  •    Vibration Resistance:10-500Hz,5G 12mins/period,72 mins for X,Y,Z axis each

IP Rating

  •   EOL prorection for luminaire
  •   Short circuit protection
  •   Over temperature/voltage/load protection



Notes:

  • 1.In the case of a three-phase power supply,do not disconnect the neutral wire; otherwise the circuit may be damaged.
  • 2.Ballast could withstand the 3 times voltage drop (over 10ms,then should turn off and restart the power supply, to reset  the ballast.
  • 3.To achieve the appropriate electromagnetic compatibililty, the internel circuit of lighting devices should be short circuit as far as possible; the power line should not in flat with the line of luminaires.
  • 4.Overheating fixtures automatically start, the fixture could be used 20mins at most.
  • 5.Could not operate 24 hours all day.



More Choise
  1000W LED grow light    IP66 180WLED street light  Aluminum high bay led light
HTB1tROVLpXXXXXpXVXXq6xXFXXXF.jpgHTB1OLN_f5qAXuNjy1Xdq6yYcVXaT.jpgAluminum-high-bay-led-light-60W-100W.jpg
Concentrator for led street light  LED flood light Solar LED street light with camera
Concentrator and Node controller.jpg-400w-led-grow-lights.jpg1

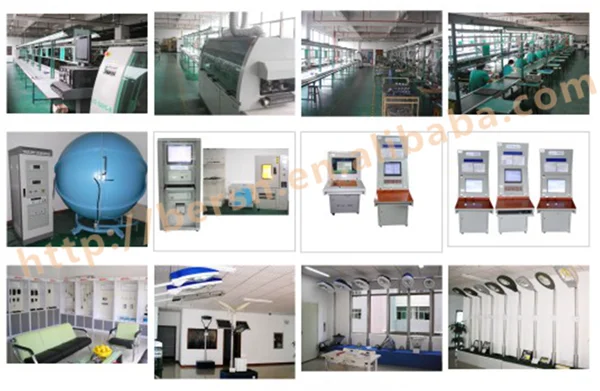

Company Information


Certifications

Certificates

Packaging & Shipping

 packing 2.jpg

shipping 1.jpg

  • 1.Payment terms:T/T, 30% deposit, 70% before shippment
  • 2.Packaging details: Standard export packing, or according to your requirements
  • 3.Transportation: By Express( DHL/UPS/TNT/Fedex ),air or sea.Freight paid by buyer
  • 4.Delivery time: 7-15 working days after receiving the deposit (Based on order quantity)



.png

Trade Shows

trade show.png

Our Services

      Welcome to contact us for more information,good quality,best service  are our  enterprise tenet.





FAQ



Q1. What about the lead time?

A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than



Q2.Do you have any MOQ limit for order?

A: Low MOQ, 1pc for sample checking is available



Q3. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.



Q4.Is it OK to print my logo on product?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.



Q5: Do you offer guarantee for the products?

A: Yes, we offer 3 years warranty to electronic ballast.
