High efficiency cdm elite 315w cmh digital ballast grow light electronic ballast

FOB Reference Price:Get Latest Price
  • 1 - 100
    US $62.00
  • 101 - 500
    US $58.00
  • >=501
    US $55.00
Supply Ability:
20000 Piece/Pieces per Month
Port:
shenzhen
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
BERSN
Model Number:
Electronic Ballast
Style:
Electronic
Usage:
High Intensity Discharge
Matched Tube:
HID
Power Factor Compensation:
Active
power:
315w
voltage:
AC220v
power factor:
≥0.95
current:
1.3A
Ignition Voltage:
3KV
Max distance to lamp:
3m
T-ambient:
-30℃~+50℃
T-case Max:
80℃
Certificate:
CE,RoHs,CCC,CQC
life span:
60000 hours
Packaging & Delivery
Packaging Details
10 pieces/carton for High efficiency cdm elite 315w cmh digital ballast grow light electronic ballast
Delivery Time
Shipped in 5 days after payment

  High efficiency cdm elite 315w cmh digital ballast grow light electronic ballast



Specifications

High efficiency cdm elite 315w cmh digital ballast grow light electronic ballast

  • 1.Energy saving , environmental
  • 2.Safety:EN61347-2-12
  • 3.CE,RoHs,CCC,CQC
Product Description

 Advantages of cdm elite 315w cmh digital ballast

  • 1.Electronic Ballast special for CosmoPolis lamp
  • 2.Quicker light start funtion
  • 3.Perfect protection funtion
  • 4.The life span can be over 60000 hours
  • 5.Compact type,easy to install
  • 6.160-260v wide range operating voltage
  • 7.The light end-of- life protection funtion
  • 8.More dimming series

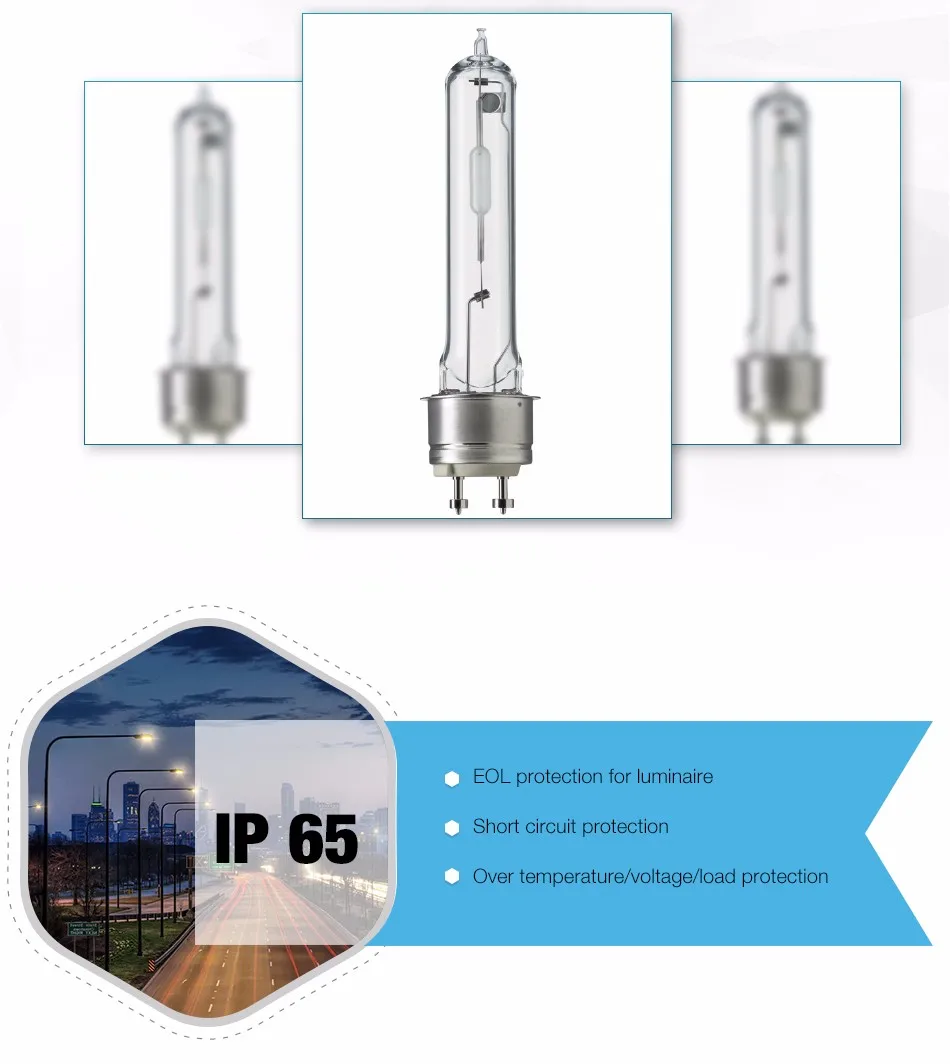

Matching light source: 315w cmh lamp

Product specification

Modelpower(w)Voltage(v)Voltage rangecurrent(A)Power factorRemark
BST2315A315w220v100v-277v1.7A≥0.95Dimming selectable



Welcome to inquire High efficiency cdm elite 315w cmh digital ballast grow light electronic ballast.

Installation Technical Parameters:

  •    Rated power supply voltage:220v-240v
  •    Performance voltage:+6%..-10% 198-254v
  •    Safe Voltage:180-264v
  •    Frequency:50/60Hz
  •    Operating Frequency(typical):140KHz
  •    Starting Voltage:3-5KV
  •    The space from any charged (metal) components to the earthing(grade)or test
  •    Grade and creepage distance :over 5mm
  •    Leak Current: every ballast less 0.7Ma
  •    Load capacity:Max. 120Pf
  •    Vibration Resistance:10-500Hz,5G 12mins/period,72 mins for X,Y,Z axis each

IP Rating

  •   EOL prorection for luminaire
  •   Short circuit protection
  •   Over temperature protection



Notes:

  • 1.In the case of a three-phase power supply,do not disconnect the neutral wire; otherwise the circuit may be dameged.
  • 2.Ballast could withstand the 3 times voltage drop (over 10ms,then should turn off and restart the power supply,to reset  the ballast.
  • 3.To achieve the appropriate electromagnetic compatibililty, the internel circuit of lighting devices should be short circuit as far as possible; the power line should not in flat with the line of luminaires.
  • 4.Overheating fixtures automatically start, the fixture could be used 20mins at most.
  • 5.Could not operate 24 hours all day.



Packaging & Shipping



  • 1.Payment terms:T/T, 30% deposit, 70% before shippment
  • 2.Packaging details: Standard export packing, or according to your requirements
  • 3.Transportation: By Express( DHL/UPS/TNT/Fedex ),air or sea.Freight paid by buyer
  • 4.Delivery time: 7-15 working days after receiving the deposit (Based on order quantity)

 Facility

 Cerfitication



Our Services

     Welcome to contact us for more information, we will reply you within 24 hours,good quality,best service  are our  enterprise tenet.

Company Information







Exhibitions





FAQ



Q1. What about the lead time?

A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than



Q2.Do you have any MOQ limit for order?

A: Low MOQ, 1pc for sample checking is available



Q3. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.



Q4.Is it OK to print my logo on product?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.



Q5: Do you offer guarantee for the products?

A: Yes, we offer 3 years warranty to electronic ballast
